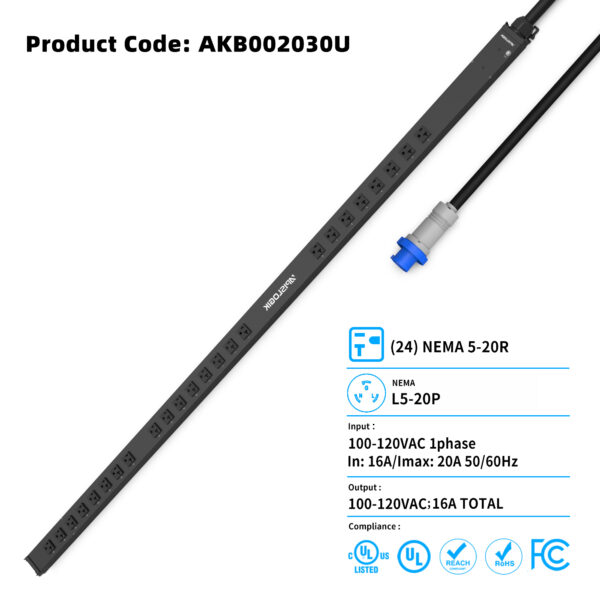

AKB002030U
BASIC RACK PDU
The Apislogik Basic PDU provides rack power distribution via a single input with multiple output receptacles and distributes power from low amperage single-phase circuits to higher-power 3-phase solutions. There are various types of input plugs, output receptacles, and protective devices available for mixing and matching. Installation methods, colors, and sizes can be chosen to meet your specific requirements.
For special pricing on bulk orders or to inquire about custom orders, please contact our sales team for support. Reach out to us here to get started!
Features
- Input
Support for IEC60309, NEMA, UK, SCHUKO, HARTING, TEC etc. - Output
Support for C13, C19, C39, NEMA, UK, SCHUKO, IEC self -locking socket. - Hydraulic magnetic circuit breaker
Stable operation in environments with a temperature of 140°F/60°C. Provides respective protection for each branch of output. (Note: Not all models provide hydraulic magnetic circuit breakers) - Hot-swap LED indicator lights
Customers can replace hot-swap LED indicator lights without powering off the system.
(Note: Not all models have hot-swap LED indicator lights) - Mounting method

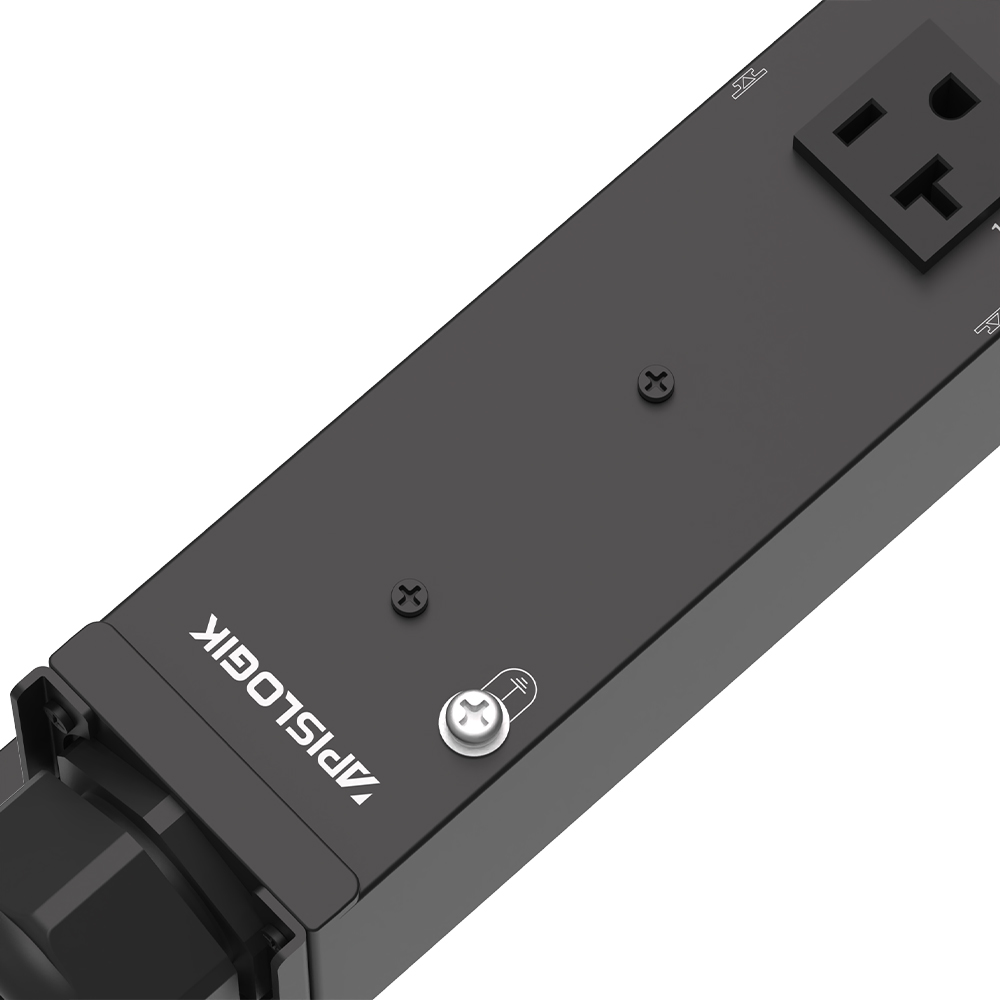

Toolless mounting peg and bracket mounting, two types of mounting options are available for selection.
SPECIFICATIONS | |
---|---|
Manufacturer | Apislogik |
Categories | PDU |
Manufacturer Product Number | AKB002030U |
Full Description | BASIC RACK PDU - 120V - 1ph+N+G - 20A - 5-20R(24) |
Series | AKB |
Type | BASIC RACK PDU |
Voltage Input | 120V |
Voltage Output | 120V |
Phase Configuration | 1ph+N+G |
Current - Max | 20A |
kW Rated | 1.9kW |
kW Max | 2.4kW |
Connector - AC Input | NEMA L5-20P |
Connector - AC Output | 5-20R(24) |
5-20R | 24 |
Part Status | ACTIVE |
Condition | New |
Mounting Type | RACK, VERTICAL |
Cord Length | 9.8’ (3m) |
Power Input Method | TOP FEED |
Mounting Style | BRACKET/PEG |
Net Weight | 11.4 |
Dimensions | 70.5"x2.2"x1.9" |
Warranty | 3-years |
Approval Agency | cUL, FCC, UL |
Region Utilized | NORTH AMERICA |
Price | $331 |
