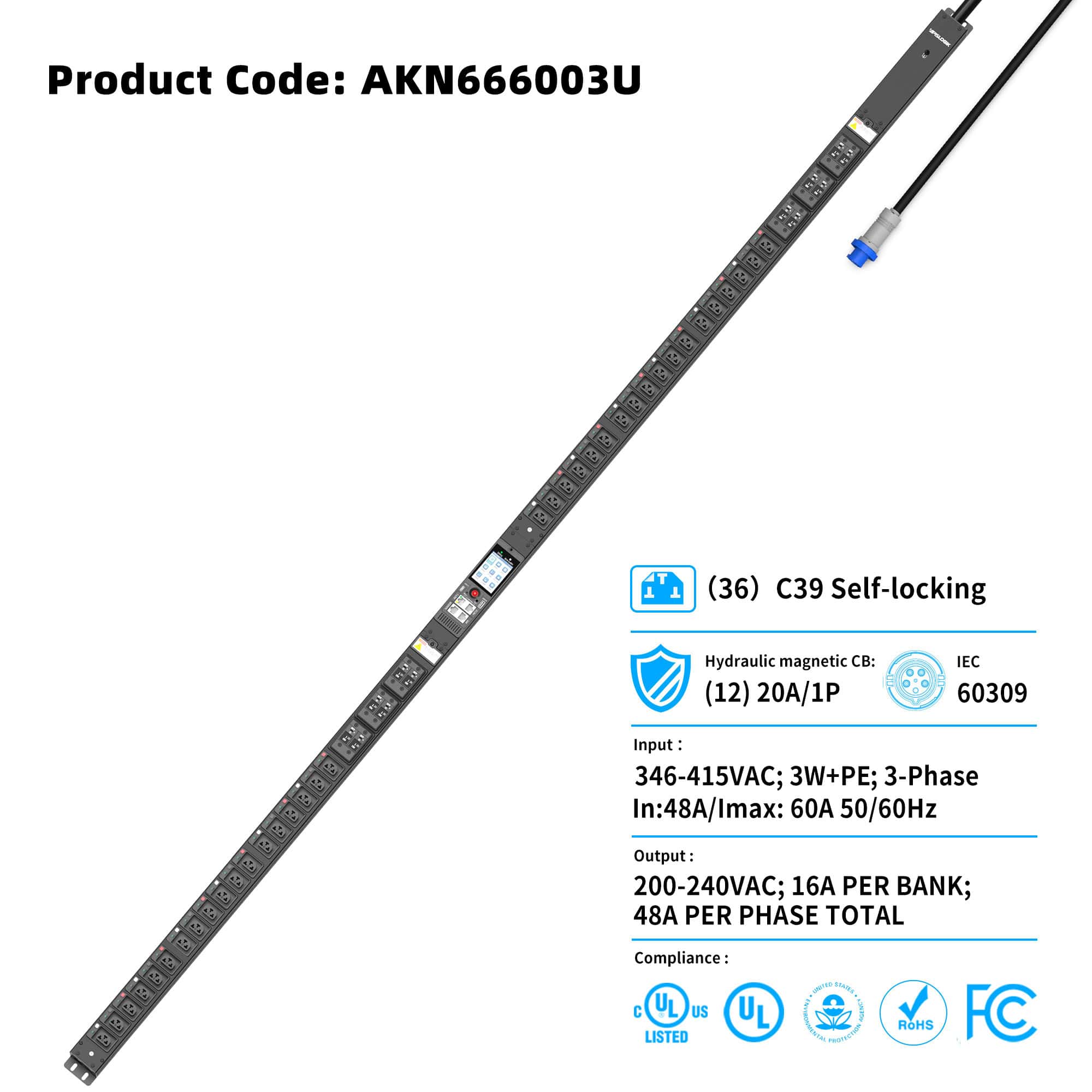

AKN666003U
METERED AND SWITCHING RACK PDU – OUTLET METERED/OUTLET SWITCHING

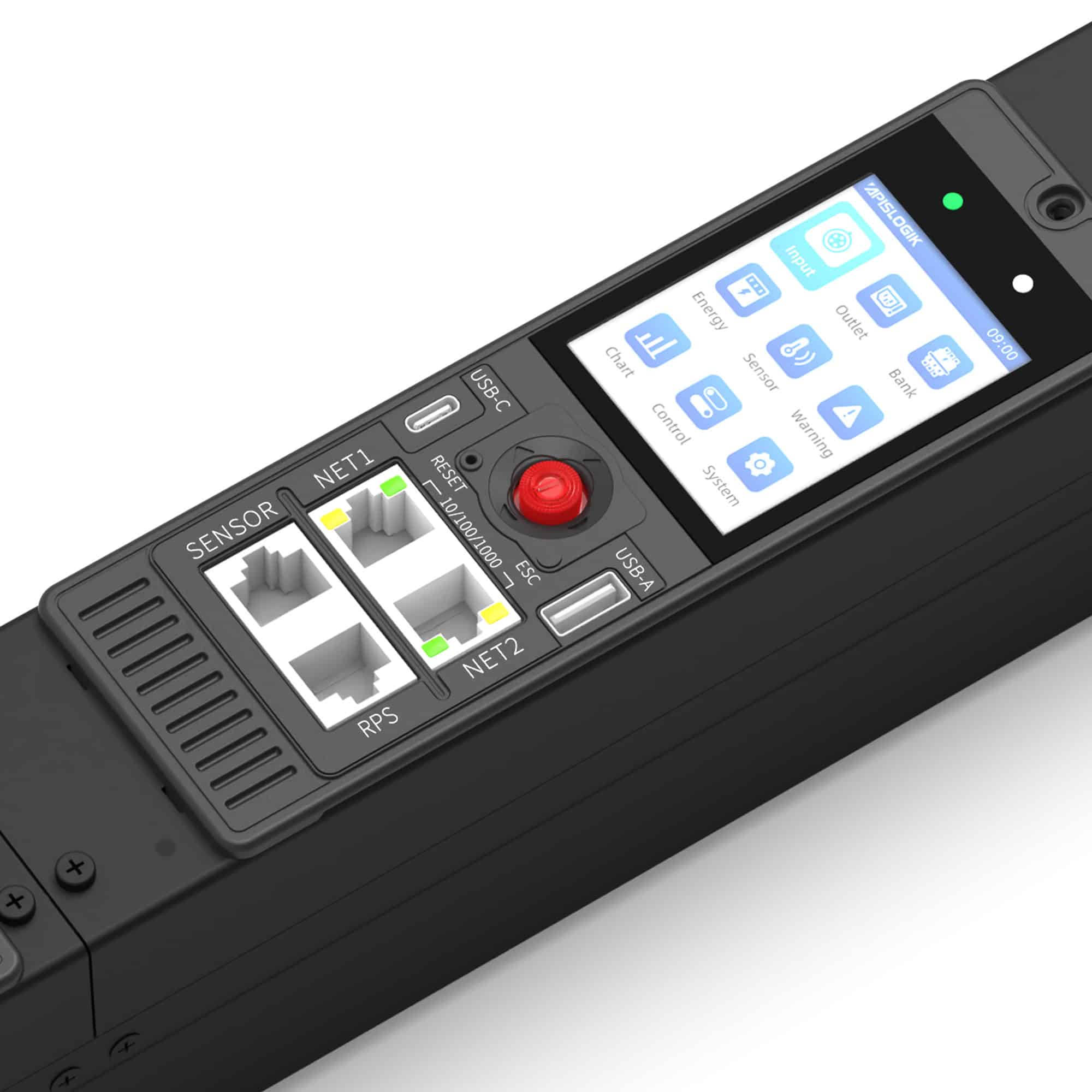

The Apislogik Metered by Outlet with Switching rack PDU can monitor input parameters in real-time, such as current, voltage, frequency, power factor, power load, energy measurement, temperature, and humidity. The voltage and current accuracy is ±0.5%. The power and energy accuracy is ±1%. The measured data can be transmitted via the network port.
For special pricing on bulk orders or to inquire about custom orders, please contact our sales team for support. Reach out to us here to get started!
Features
SPECIFICATIONS | |
---|---|
Manufacturer | Apislogik |
Categories | PDU |
Manufacturer Product Number | AKN666003U |
Full Description | METERED AND SWITCHING RACK PDU – OUTLET METERED/OUTLET SWITCHING - 415V - 3ph+N+G - 60A - C39(36) |
Series | AKN |
Type | METERED AND SWITCHING RACK PDU – OUTLET METERED/OUTLET SWITCHING |
Voltage Input | 415v |
Voltage Output | 415V |
Phase Configuration | 3ph+N+G |
Current - Max | 60A |
kW Rated | 34.5kW |
kW Max | 43.1kW |
Connector - AC Input | IEC 60309 560P6w |
Connector - AC Output | C39(36) |
C13 | N/A |
C19 | N/A |
C39 | 36 |
5-20R | N/A |
Part Status | ACTIVE |
Condition | New |
Mounting Type | RACK, VERTICAL |
Cord Length | 9.8’ (3m) |
Warranty | 3-years |
Approval Agency | cUL, FCC, UL |
Region Utilized | NORTH AMERICA |
Price | $4040 |
