AKN661B02U
METERED AND SWITCHING RACK PDU – OUTLET METERED/OUTLET SWITCHING
The Apislogik Metered by Outlet with Switching rack PDU can monitor input parameters in real-time, such as current, voltage, frequency, power factor, power load, energy measurement, temperature, and humidity. The voltage and current accuracy is ±0.5%. The power and energy accuracy is ±1%. The measured data can be transmitted via the network port.
For special pricing on bulk orders or to inquire about custom orders, please contact our sales team for support. Reach out to us here to get started!
Features
- Input
Support for IEC 60309, NEMA, UK, SCHUKO, HARTING, TEC etc. - Output

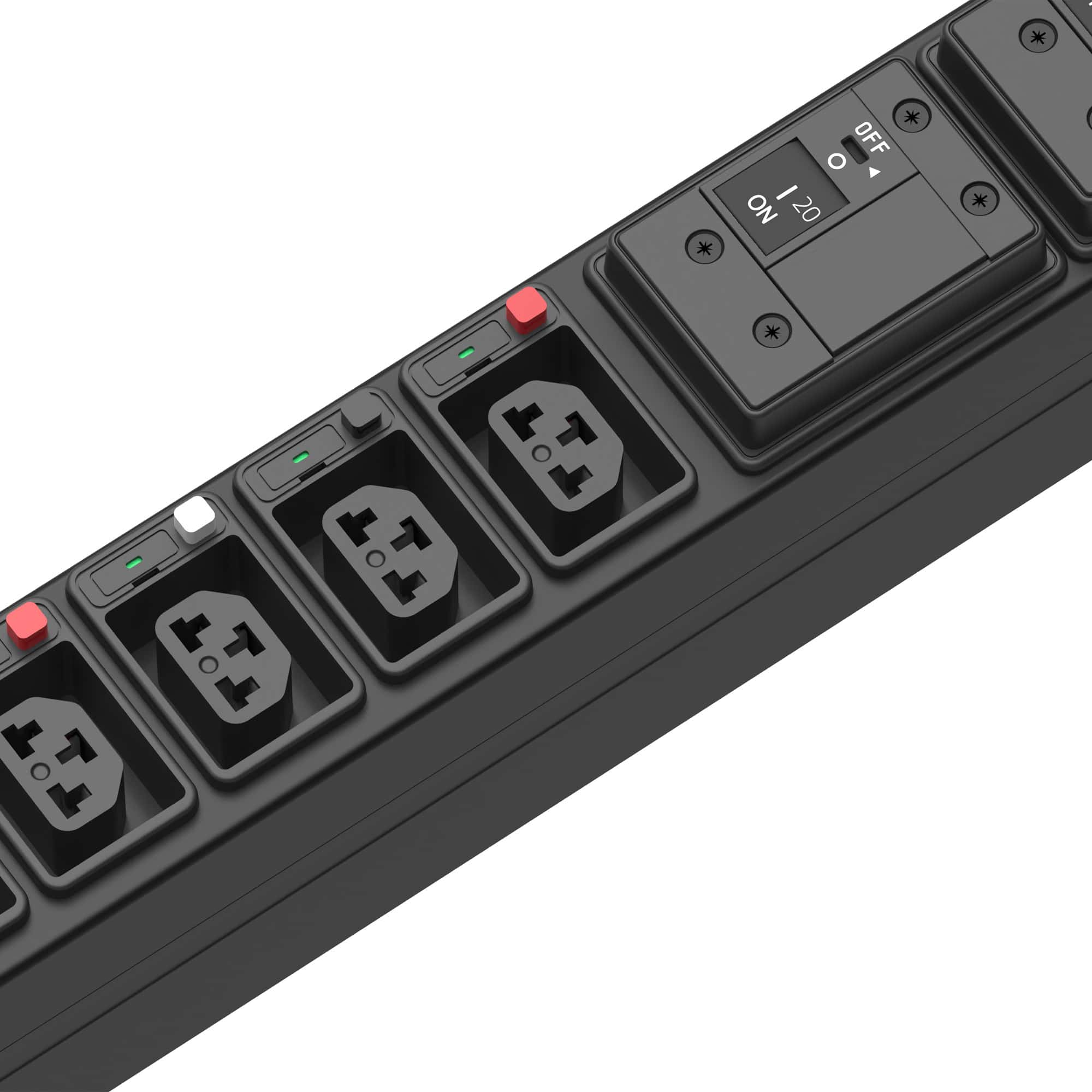

Support for C13, C19, C39, NEMA, UK, SCHUKO, IEC self -locking socket. - Hydraulic magnetic circuit breaker
Stable operation in environments with a temperature of 140°F/60°C. Provides respective
protection for each branch of output. (Note: Not all models provide hydraulic magnetic circuit breakers) - Hot-swap LED indicator lights
Customers can replace hot-swap LED indicator lights without powering off the system.
(Note: Not all models have hot-swap LED indicator lights) - Mounting method
Toolless mounting peg and bracket mounting, two types of mounting options are available for selection. - Hot-swap network management controller
User is allowed for NMC replacement without power down of the PDU. Apislogik NMC supporting、IPV4、IPV6、SNMP V1, V2c, V3、HTTP/S、Modbus TCP、SSH、SSL to TLS 1.3 options. - Ports and Cascading

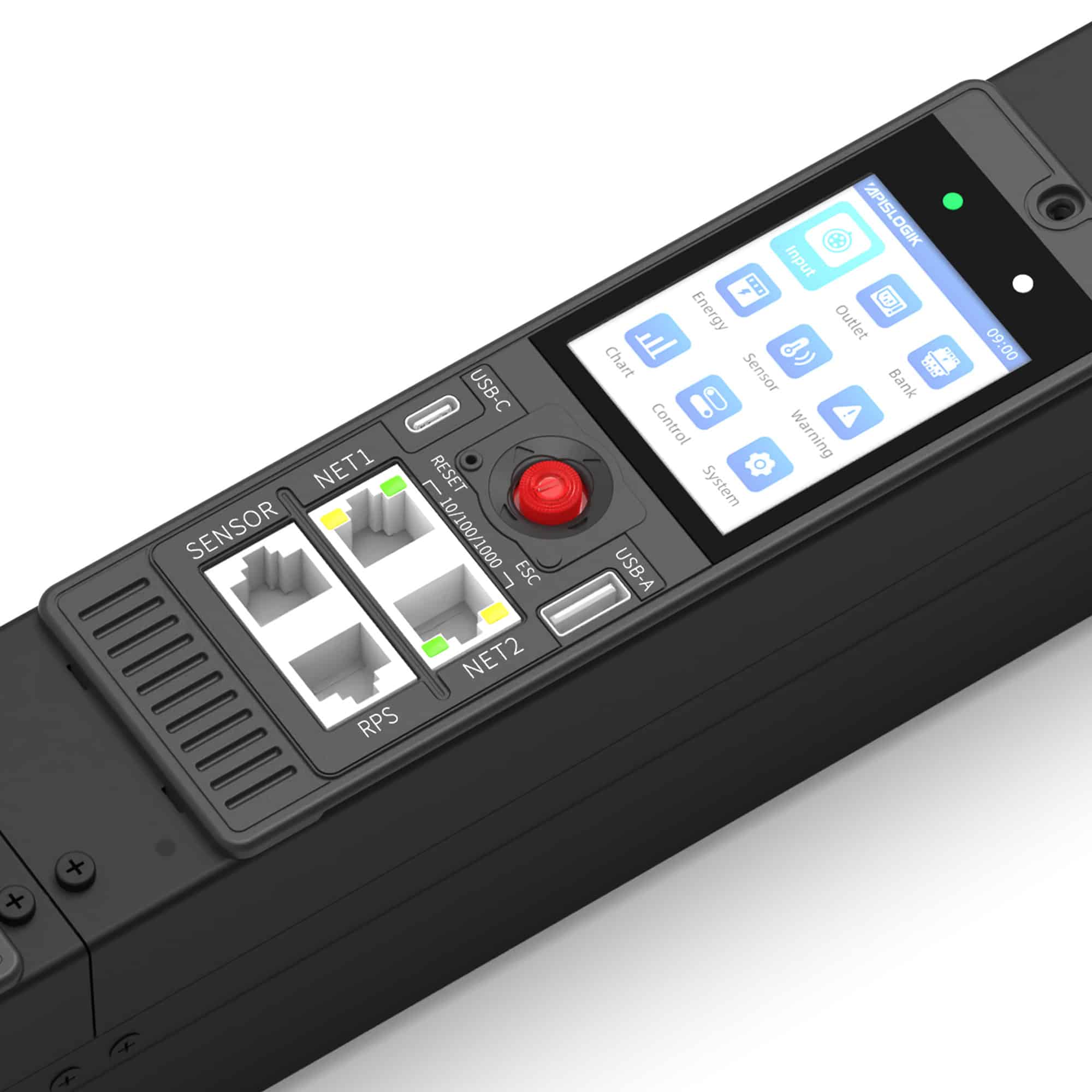

Apislogik Metered by Outlet with Switching Rack PDU provide 2 RJ45 port, 2 RJ11port ,USB-A,USB-C.
2 RJ45 ports include two 1000M adaptive Ethernet ports and two 485 cascade ports. Allows 32 slaves to cascade or 1 master to 32 slaves to cascade. Maximum of 33 PDUs share one IP address.
The two RJ11 ports include 1 temperature and humidity sensor port, leakage sensor, smoke sensor and alarm port.
USB-C connect to laptop for quick configuration to set the data, USB-A port inset flash to batch upgrade firmware. - LCD display
Graphical display, allows local access, providing user interactive display of voltage, current or active power, alarms, configuration information, and more. - Alarms and logs
Apislogik Metered by Outlet with Switching Rack PDU provides real-time remote monitoring of connected loads. Configurable alarm thresholds that provide network and visual alarm to help avoid circuit overloads.
In the Logs are the events which have occurred most recently and the dates and times they occurred. A maximum of 10000 events are saved and shown at in the logs.
* Product Characteristics subject to change without prior notice.
* Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
