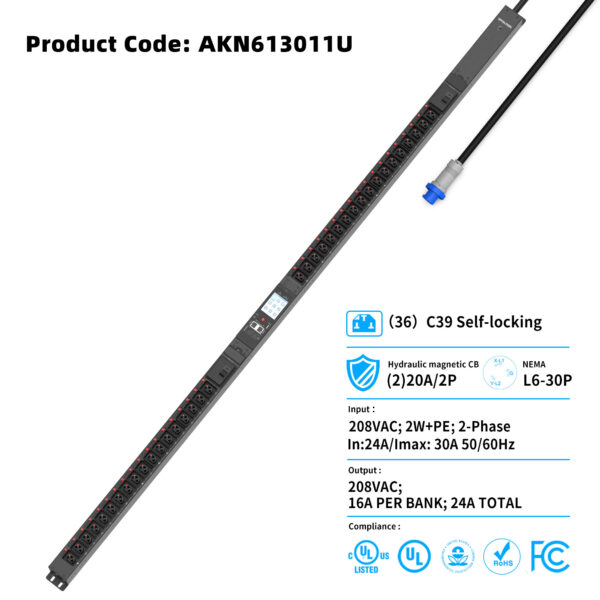

AKN613011U

METERED AND SWITCHING RACK PDU – OUTLET METERED/OUTLET SWITCHING

The Apislogik Metered by Outlet with Switching rack PDU can monitor input parameters in real-time, such as current, voltage, frequency, power factor, power load, energy measurement, temperature, and humidity. The voltage and current accuracy is ±0.5%. The power and energy accuracy is ±1%. The measured data can be transmitted via the network port.

For special pricing on bulk orders or to inquire about custom orders, please contact our sales team for support. Reach out to us here to get started!

Features

SPECIFICATIONS
Manufacturer	Apislogik
Categories	PDU
Full Description	METERED AND SWITCHING RACK PDU – OUTLET METERED/OUTLET SWITCHING - 208V - 2ph+G - 30A - C39(36)
Series	AKN
Type	METERED AND SWITCHING RACK PDU – OUTLET METERED/OUTLET SWITCHING
Voltage Input	208V
Voltage Output	208V
Phase Configuration	2ph+G
Current - Max	30A
kW Rated	5.0kW
kW Max	6.2kW
Connector - AC Input	NEMA L6-30P

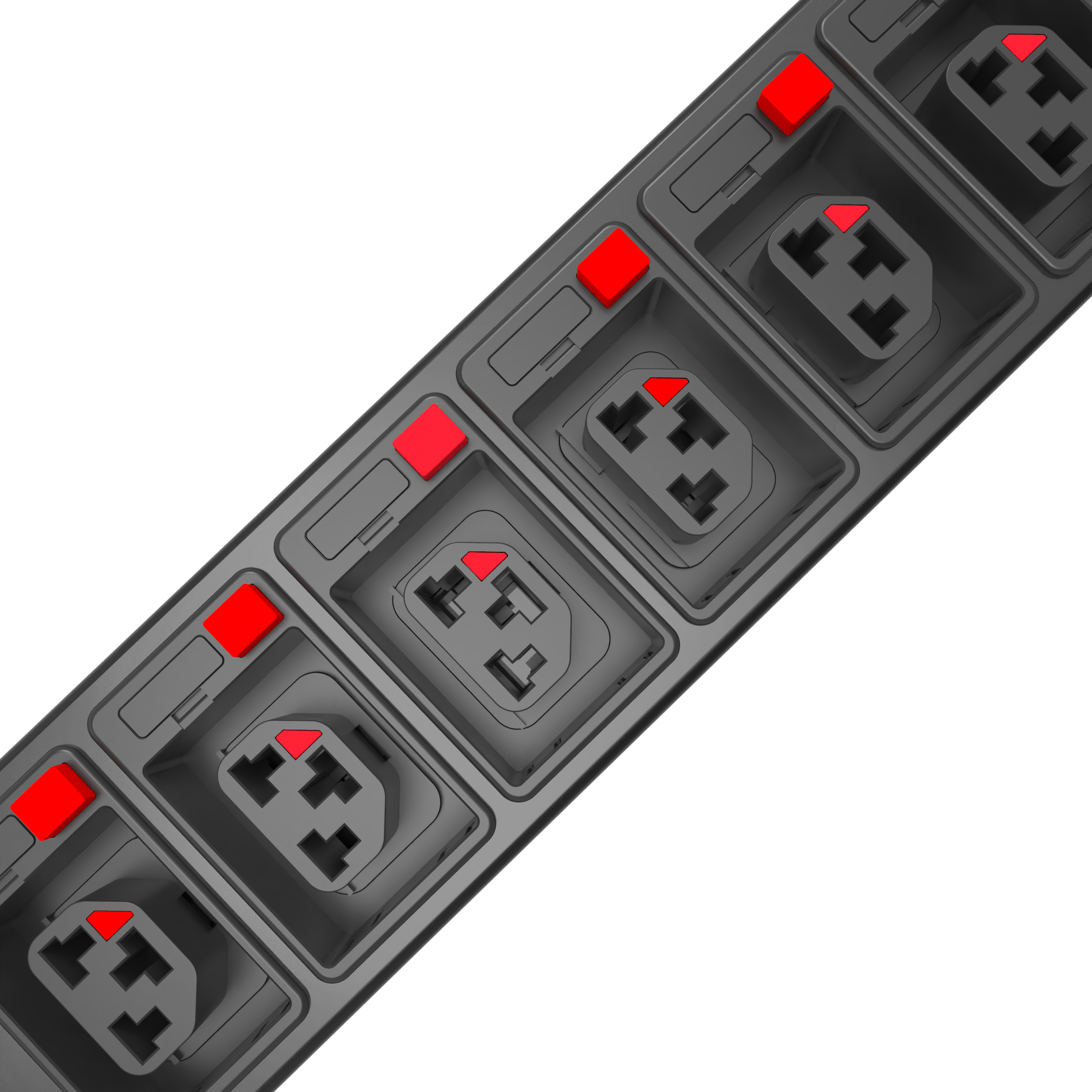

Connector - AC Output	(36) C39 Self-locking
C39	36
Condition	New
Mounting Type	RACK, VERTICAL
Cord Length	9.8’ (3m)
Power Input Method	TOP FEED
Mounting Style	BRACKET/PEG
Net Weight	17.2
Dimensions	72"x2.2"x2.7"
Warranty	1-year
Approval Agency	cUL, FCC, UL
Region Utilized	NORTH AMERICA
Price	$2208

* Product Characteristics subject to change without prior notice.

* Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

Download Datasheet
