AKN152058U

METERED RACK PDU – INPUT

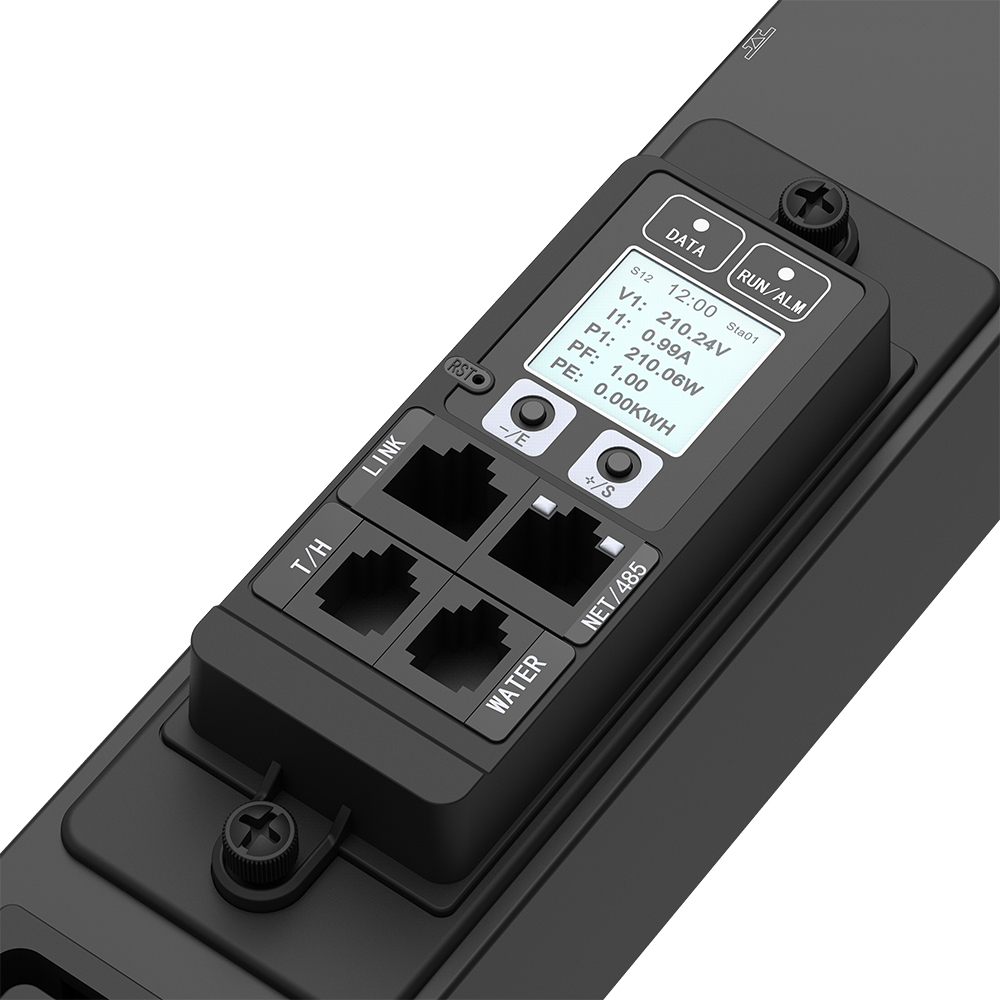

The Apislogik Input Metered PDU can monitor input parameters in real-time, such as current, voltage, frequency, power factor, power load, energy measurement, temperature, and humidity. The voltage and current accuracy is ±1%. The power and energy accuracy is ±2%. The measured data can be transmitted via the network port.

Inventory Count: 500

In stock

$568.00

For special pricing on bulk orders or to inquire about custom orders, please contact our sales team for support. Reach out to us here to get started!

Features

SPECIFICATIONS
ManufacturerApislogik
CategoriesPDU
Manufacturer Product NumberAKN152058U

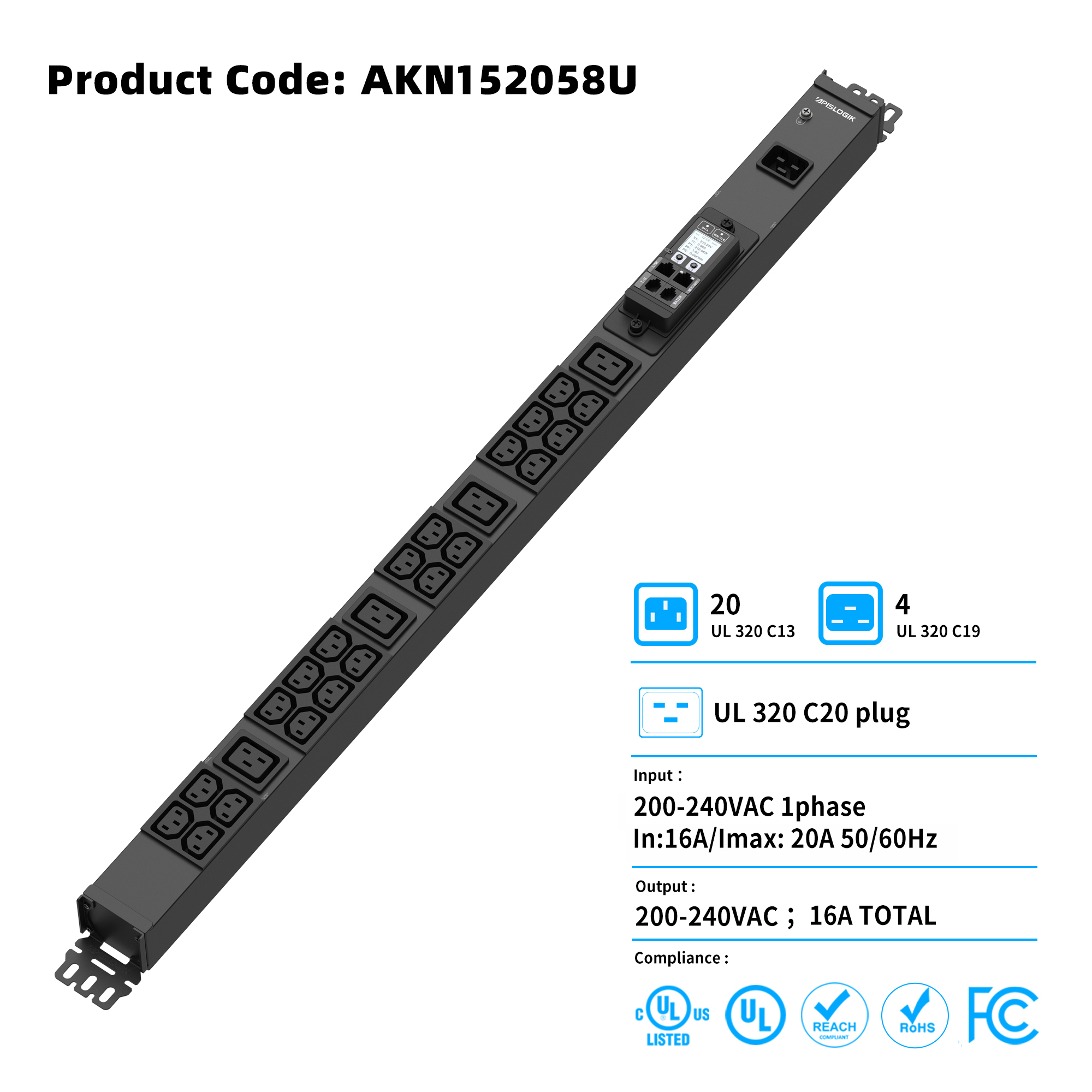

Full DescriptionMETERED RACK PDU – INPUT - 230V - 1ph+N+G - 20A - C13(20) C19(4)
SeriesAKN
TypeMETERED RACK PDU – INPUT
Voltage Input230v
Voltage Output230V
Phase Configuration1ph+N+G
Current - Max20A
kW Rated3.7kW
kW Max4.6kW
Connector - AC InputIEC 60320 C20

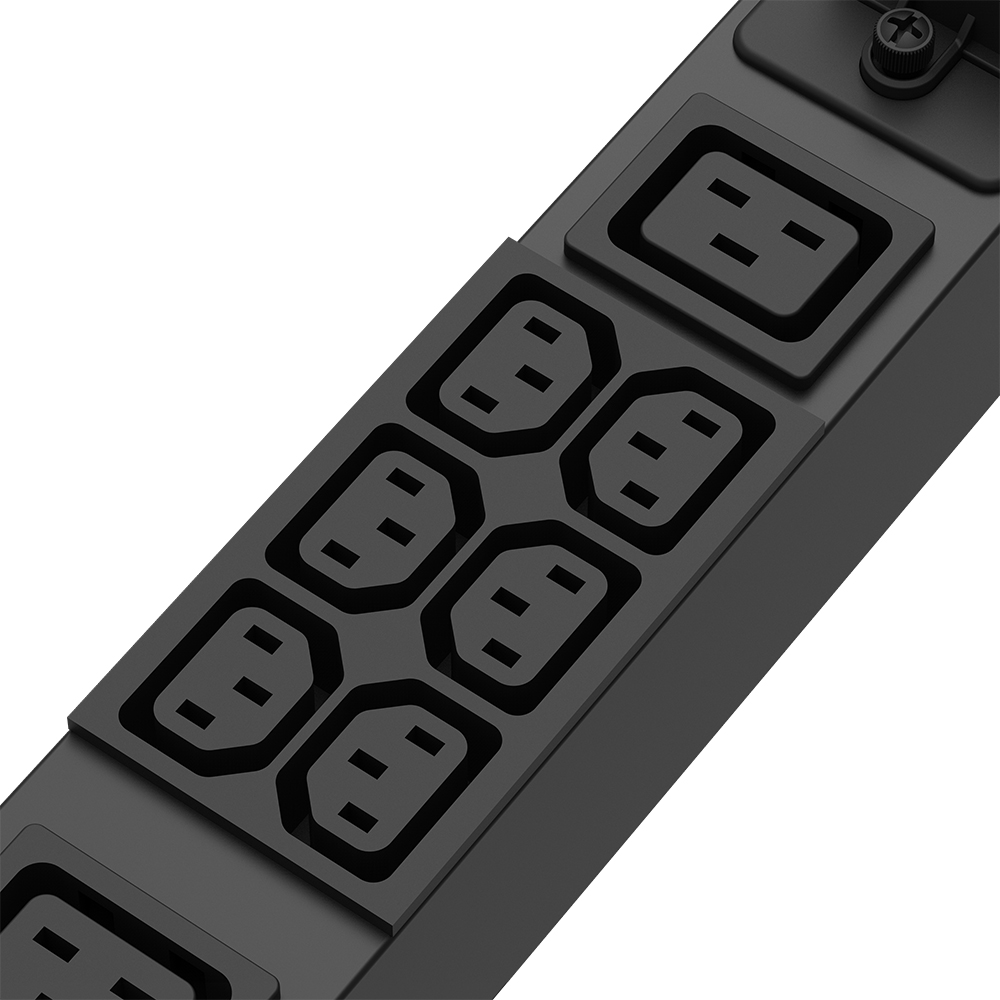

Connector - AC OutputC13(20) C19(4)
C1320
C194
C39N/A
5-20RN/A
Part StatusACTIVE
ConditionNew
Mounting TypeRACK, VERTICAL
Cord Length9.8’ (3m)
Warranty3-years
Approval AgencycUL, FCC, UL
Region UtilizedNORTH AMERICA
Price$568

* Product Characteristics subject to change without prior notice.

* Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
