AKN136066U

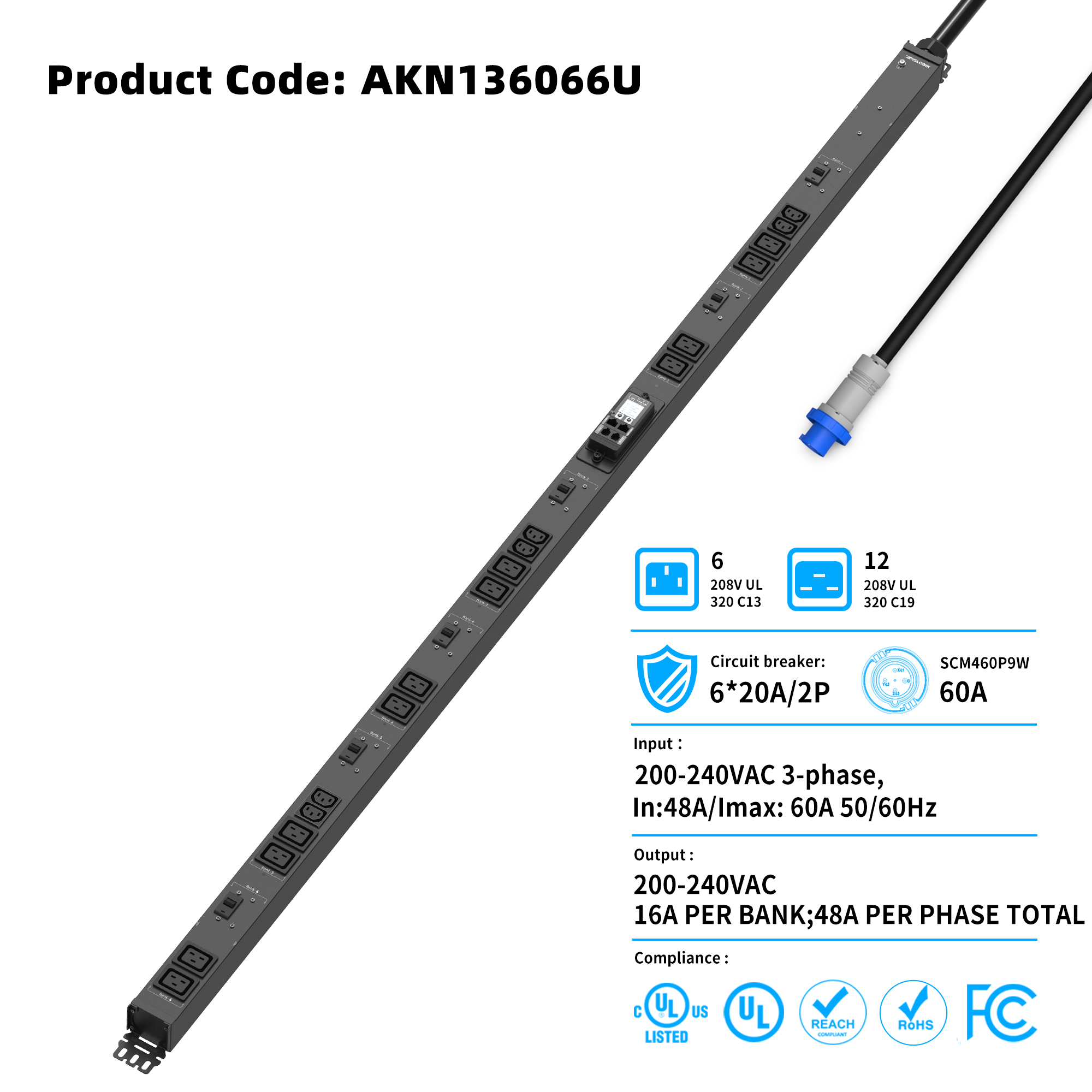

METERED RACK PDU – INPUT

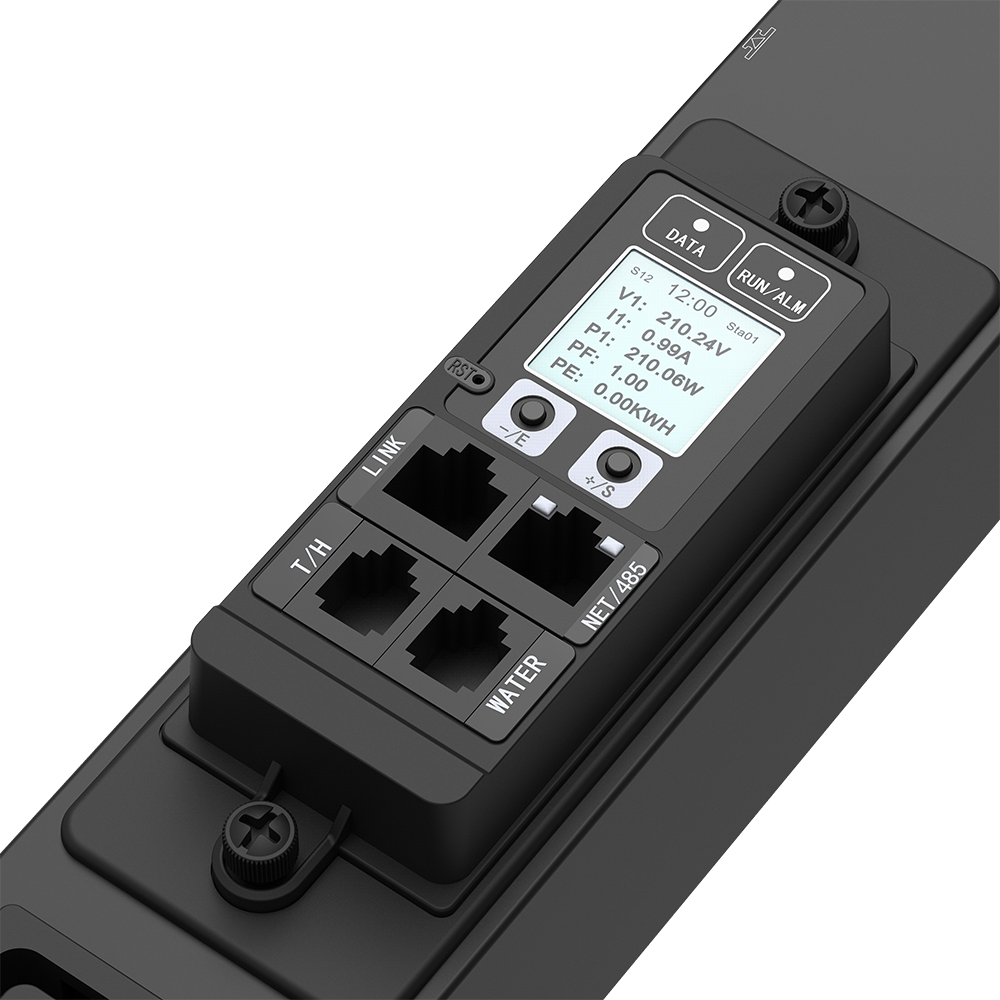

The Apislogik Input Metered PDU can monitor input parameters in real-time, such as current, voltage, frequency, power factor, power load, energy measurement, temperature, and humidity. The voltage and current accuracy is ±1%. The power and energy accuracy is ±2%. The measured data can be transmitted via the network port.
For special pricing on bulk orders or to inquire about custom orders, please contact our sales team for support. Reach out to us here to get started!
Features
SPECIFICATIONS | |
---|---|
Manufacturer | Apislogik |
Categories | PDU |
Manufacturer Product Number | AKN136066U |
Full Description | METERED RACK PDU – INPUT - 208V - 3ph+G - 60A - C13(6) C19(12) |
Series | AKN |
Type | METERED RACK PDU – INPUT |
Voltage Input | 208v |
Voltage Output | 208V |
Phase Configuration | 3ph+G |
Current - Max | 60A |
kW Rated | 17.3kW |
kW Max | 21.6kW |
Connector - AC Input | IEC 60309 460P9 |
Connector - AC Output | C13(6) C19(12) |
C13 | 6 |
C19 | 12 |
C39 | N/A |
5-20R | N/A |
Part Status | ACTIVE |
Condition | New |
Mounting Type | RACK, VERTICAL |
Cord Length | 9.8’ (3m) |
Warranty | 3-years |
Approval Agency | cUL, FCC, UL |
Region Utilized | NORTH AMERICA |
Price | $2591.6 |
* Product Characteristics subject to change without prior notice.
* Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
