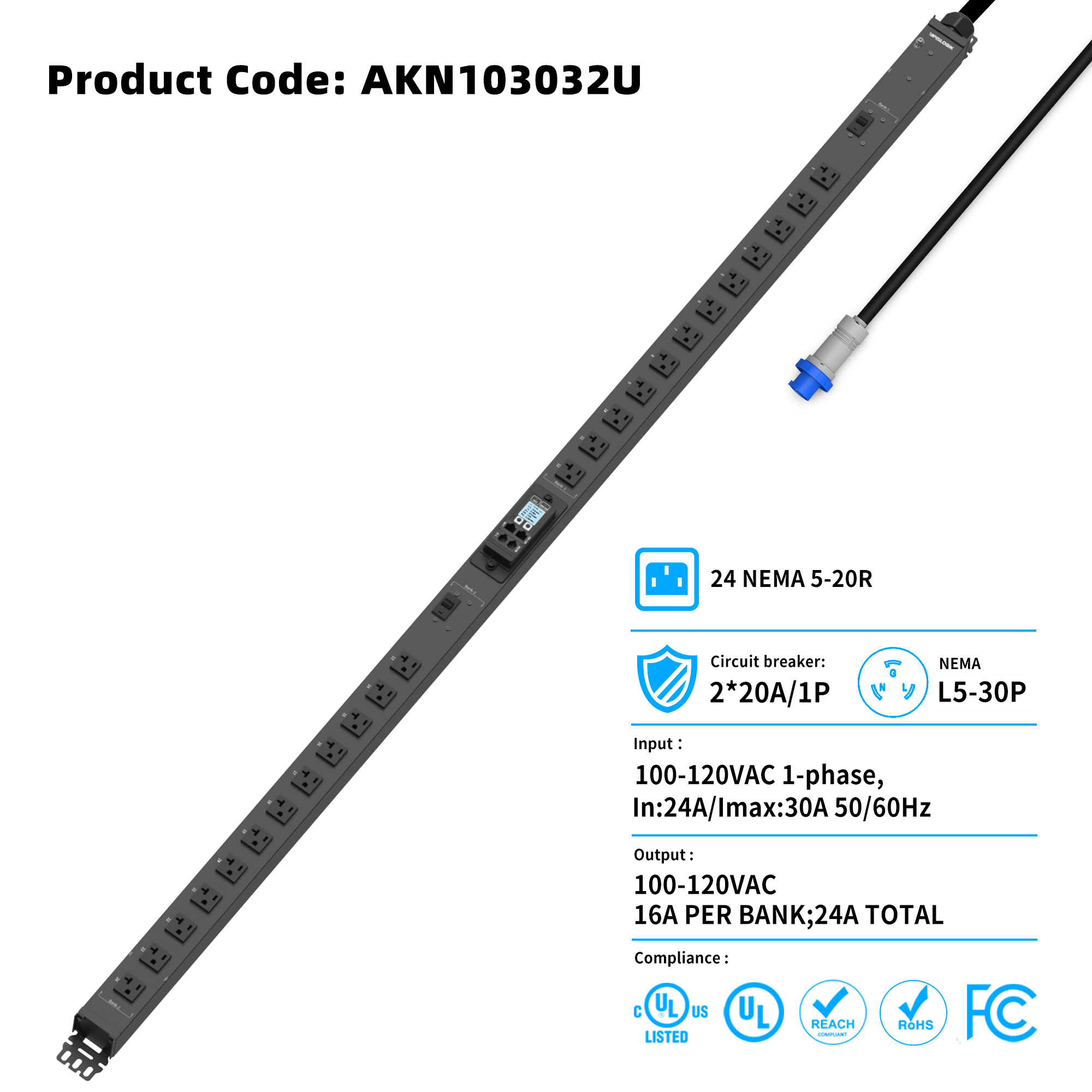

AKN103032U

METERED RACK PDU – INPUT

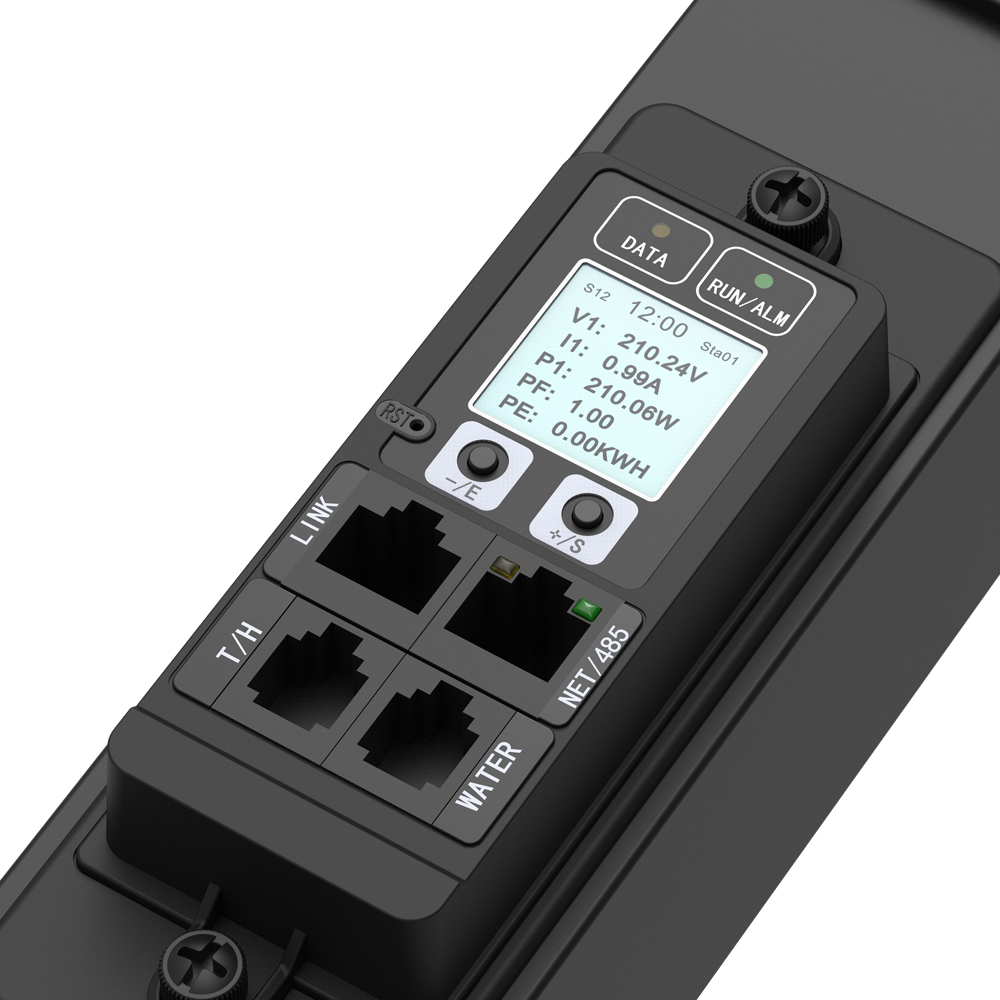

The Apislogik Input Metered PDU can monitor input parameters in real-time, such as current, voltage, frequency, power factor, power load, energy measurement, temperature, and humidity. The voltage and current accuracy is ±1%. The power and energy accuracy is ±2%. The measured data can be transmitted via the network port.

Inventory Count: 500

In stock

$744.00

For special pricing on bulk orders or to inquire about custom orders, please contact our sales team for support. Reach out to us here to get started!

Features

SPECIFICATIONS
ManufacturerApislogik
CategoriesPDU
Manufacturer Product NumberAKN103032U
Full DescriptionMETERED RACK PDU – INPUT - 120V - 1ph+N+G - 30A - 5-20R(24)
SeriesAKN
TypeMETERED RACK PDU – INPUT
Voltage Input120v
Voltage Output120V
Phase Configuration1ph+N+G
Current - Max30A
kW Rated2.9kW
kW Max3.6kW
Connector - AC InputNEMA L5-30P
Connector - AC Output5-20R(24)
C13N/A
C19N/A
C39N/A
5-20R24
Part StatusACTIVE
ConditionNew
Mounting TypeRACK, VERTICAL
Cord Length9.8’ (3m)
Warranty3-years
Approval AgencycUL, FCC, UL
Region UtilizedNORTH AMERICA
Price$744

* Product Characteristics subject to change without prior notice.

* Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
