AKB043065U

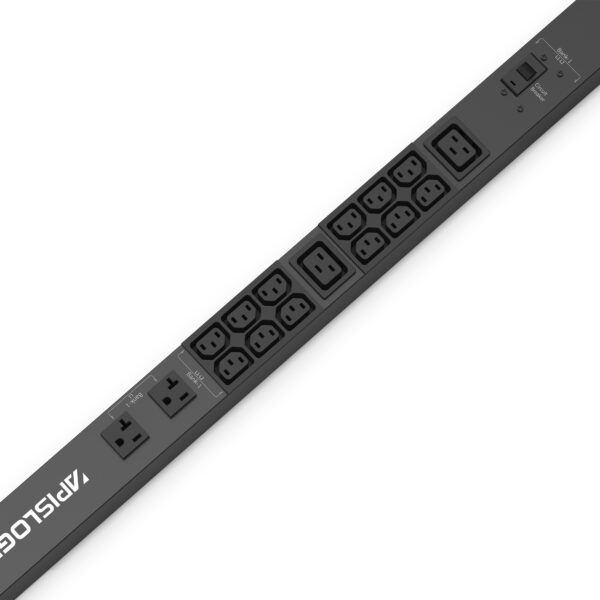

The Apislogik Basic PDU provides rack power distribution via a single input with multiple output receptacles and distributes power from low amperage single-phase circuits to higher-power 3-phase solutions. There are various types of input plugs, output receptacles, and protective devices available for mixing and matching. Installation methods, colors, and sizes can be chosen to meet your specific requirements.

For special pricing on bulk orders or to inquire about custom orders, please contact our sales team for support. Reach out to us here to get started!

Features

SPECIFICATIONS
Manufacturer	Apislogik
Categories	PDU
Series	AKB
Type	BASIC RACK PDU
Voltage Input	208V
Voltage Output	120/208 V AC
Phase Configuration	3ph+N+G
Current - Max	30A
kW Rated	8.64kW
kW Max	10.8kW
Connector - AC Input	NEMA L21-30P
Connector - AC Output	(36)IEC C13;208 V AC (6)IEC C19;208 V AC (2)NEMA 5-20R;120 V AC
C13	36
C19	6
5-20R	2
Part Status	ACTIVE
Condition	New
Mounting Type	RACK, VERTICAL
Cord Length	9.8’ (3m)
Power Input Method	TOP FEED
Mounting Style	BRACKET/PEG
Net Weight	19.84
Dimensions	70.5" × 2.2" × 1.9"
Warranty	1-year
Approval Agency	UL、CUL
Region Utilized	NORTH AMERICA
Price	$635

* Product Characteristics subject to change without prior notice.

* Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

Download Datasheet
